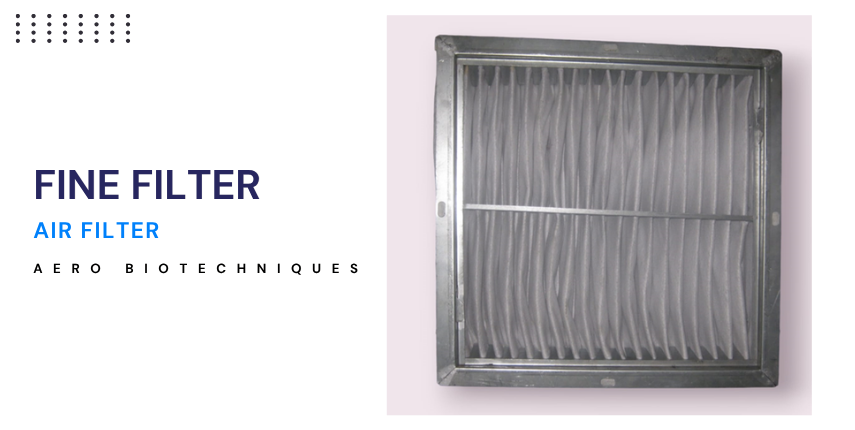

FINE FILTER

FINE FILTERS

ATHLETE Fine Filters: Fine filters, also referred to as MICROVEE FILTERS, are indispensable components installed within Air Handling Units (AHUs) to ensure optimal air quality. Their primary function is to prevent the passage of dust particles and contaminants, guaranteeing that only clean and purified air circulates through the HVAC system. These are extended surface filters that can be manufactured either in either "Rigid pocket" or "Soft pocket" types to suit the application. They are available up to filtration efficiency of 95% for 1micron particle size. (Overall filtration efficiency by using discrete particle count efficiency test method). Suitable for use as filter grades F5 to F9 of EN779 and MERV 8 to MERV 15 of ASHRAE 52.2. Can be manufactured with or without "Flange" or "Header". Optional perforated metal or expanded metal guard.
Available in casing thickness from 0.5 to 1.5 mm in MOC variants of Galvanized sheet steel, Aluminium or Stainless steel in varying depths of 25, 100, 150, or 300 mm.

Suitable surface finish for the casing can be provided.

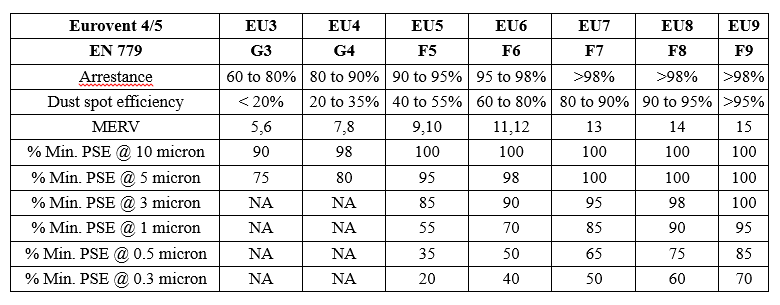

Choose the right grade of filter that suits your requirement from the table below:

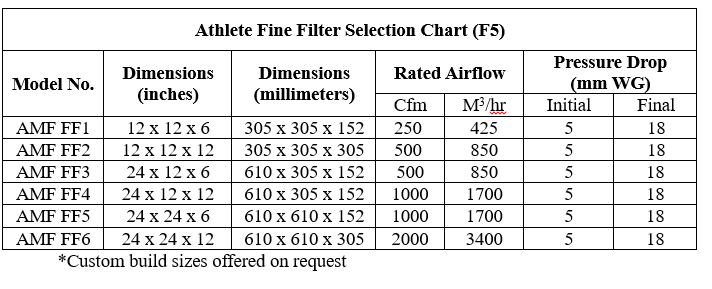

Manufactured in standard sizes as mention below and also for the customer's specific sizes.

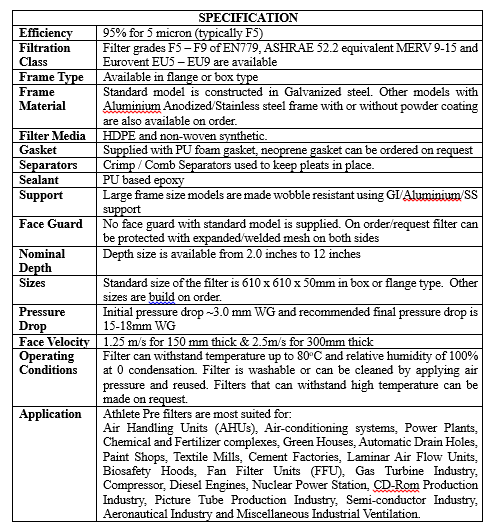

Construction: high quality synthetic non-woven media is housed inside a filter frame supported by a fine aluminium mesh on one side and HDPE media on the other side.
